Berlin German circuit protection & LED lighting · Pakistan
Where sparks meet perfection.
SR Electricals supplies Berlin German miniature circuit breakers, DC breakers, switch-disconnectors, PV surge protectors and energy-saving LED lights — engineered to IEC standards and backed by a 2-year guarantee.
- 6–10 kA
- Breaking capacity
- 1000 V
- DC rated protection
- 2 yrs
- Breaker guarantee
- 85%
- LED energy saving

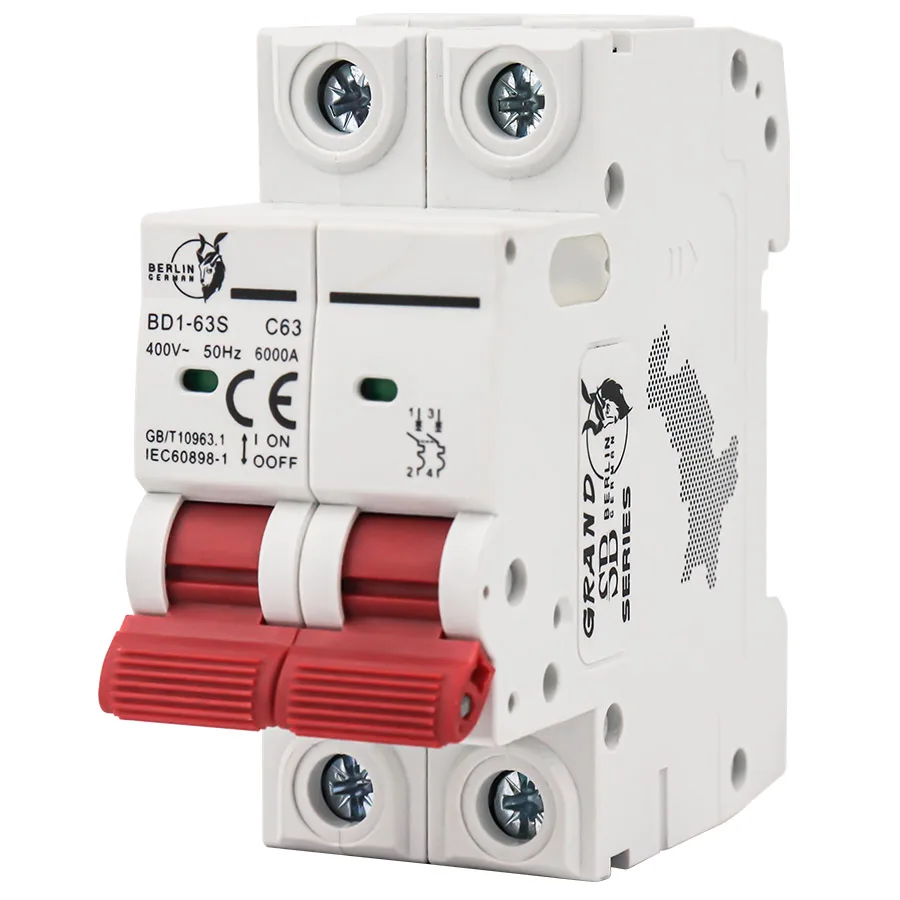

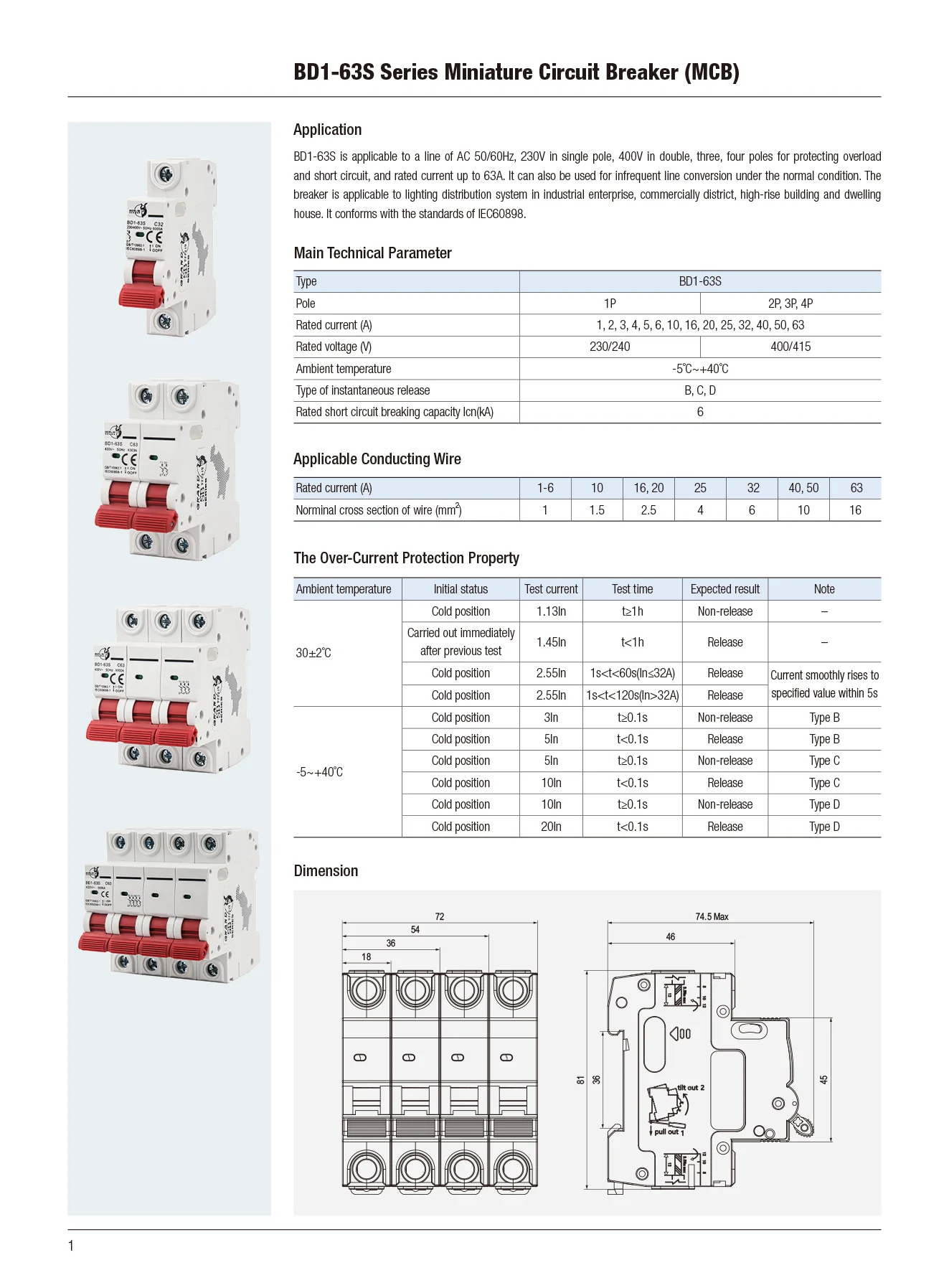

BD1-63S
AC MCB · 6 kA

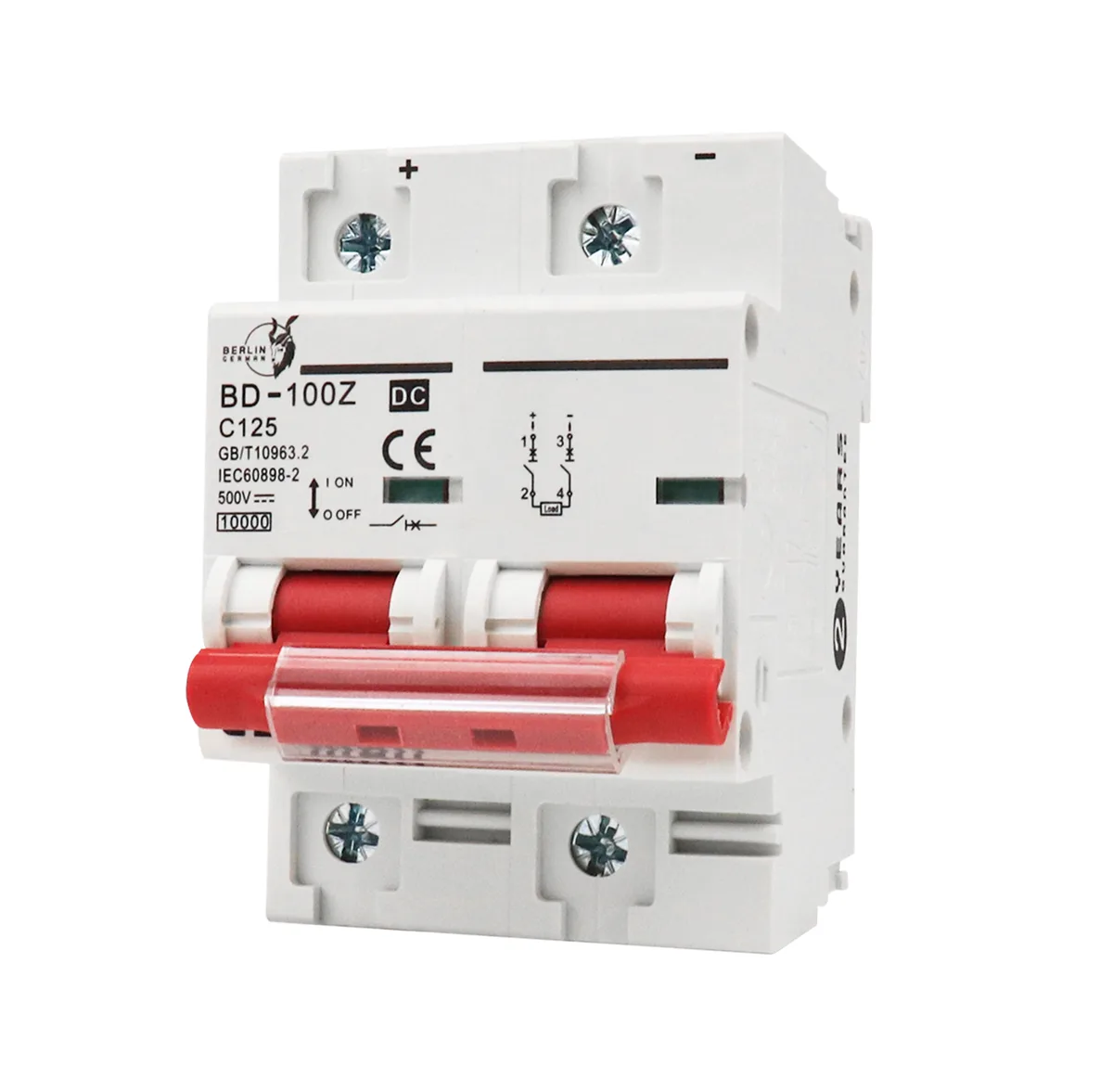

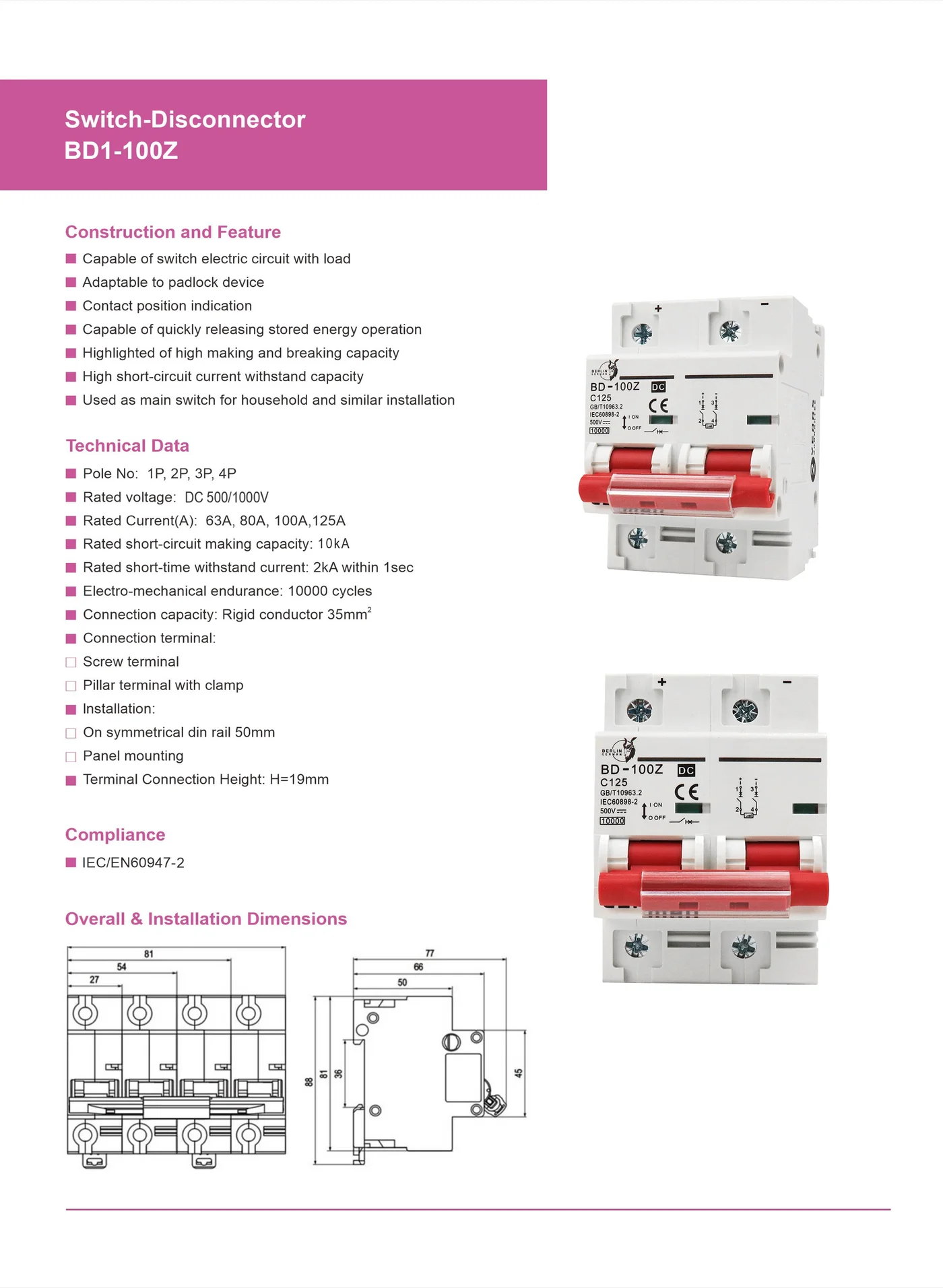

BD-100Z
DC isolator · 125 A

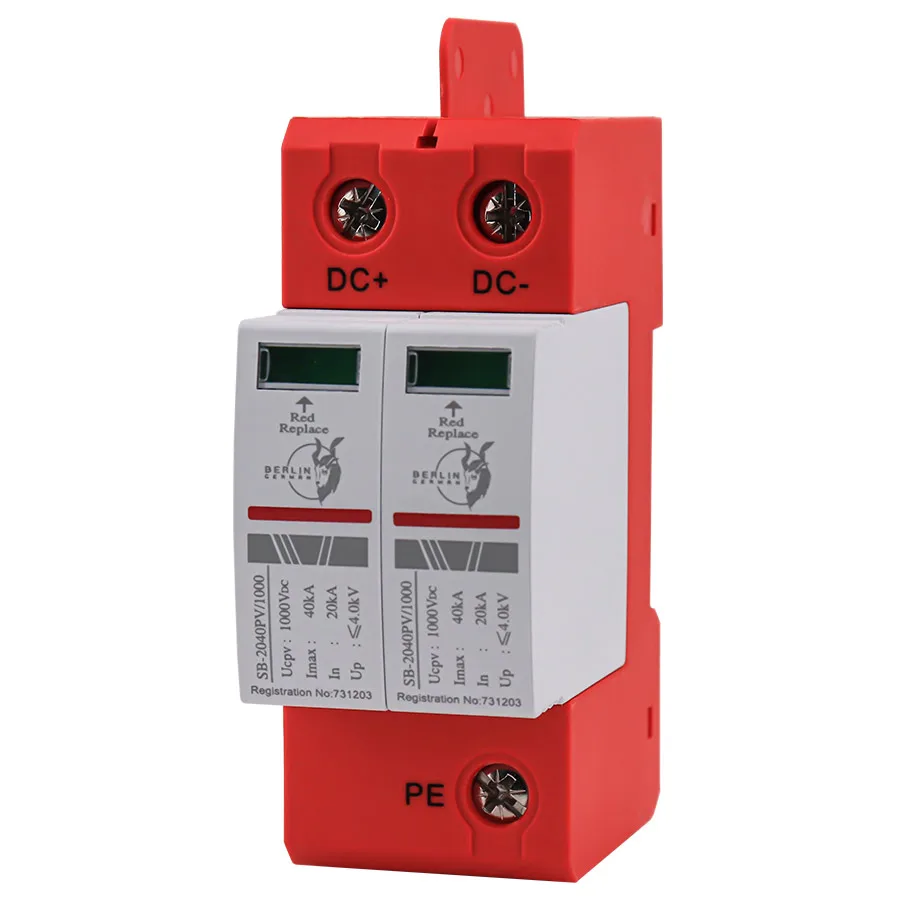

SB-2040PV
PV surge · 40 kA

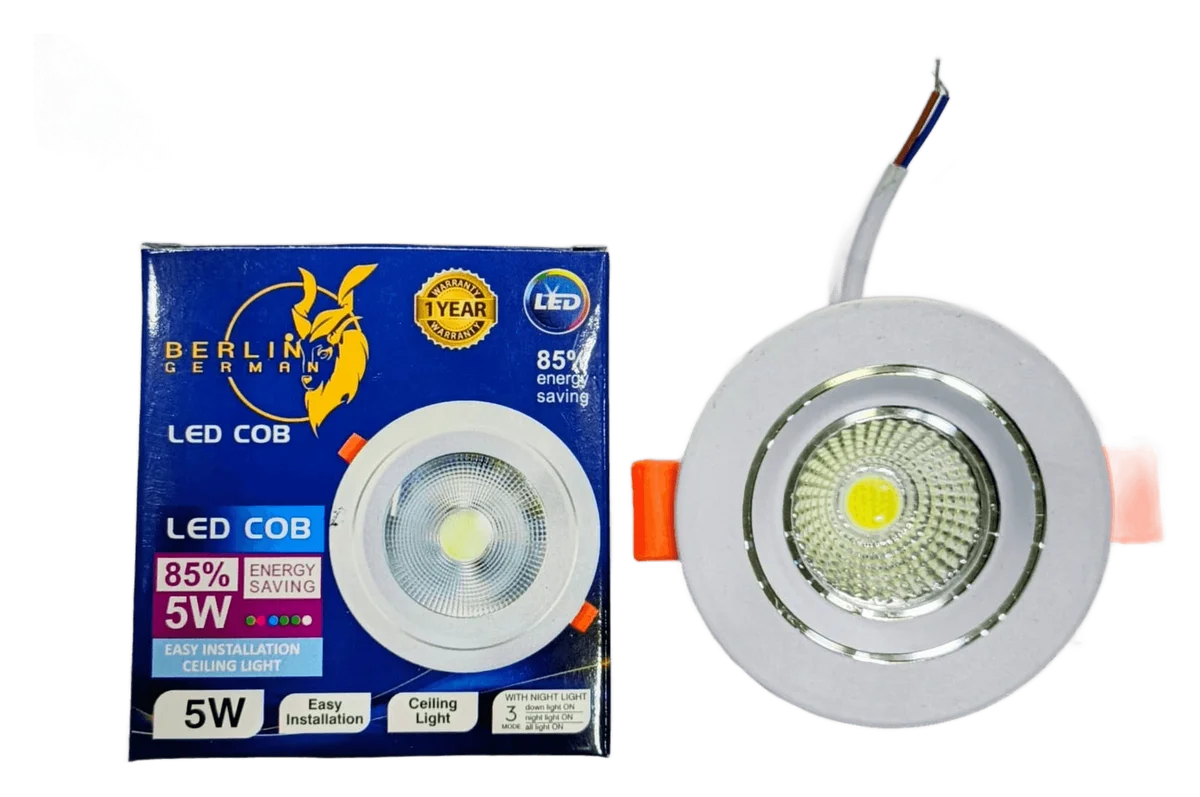

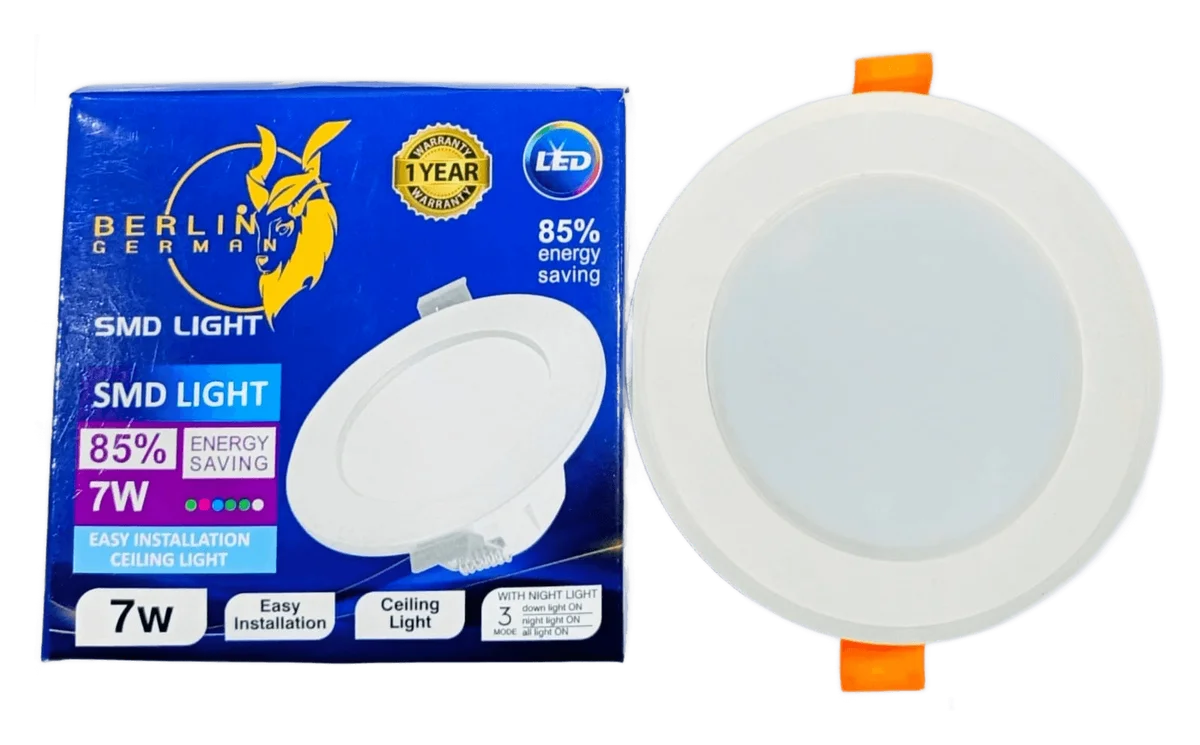

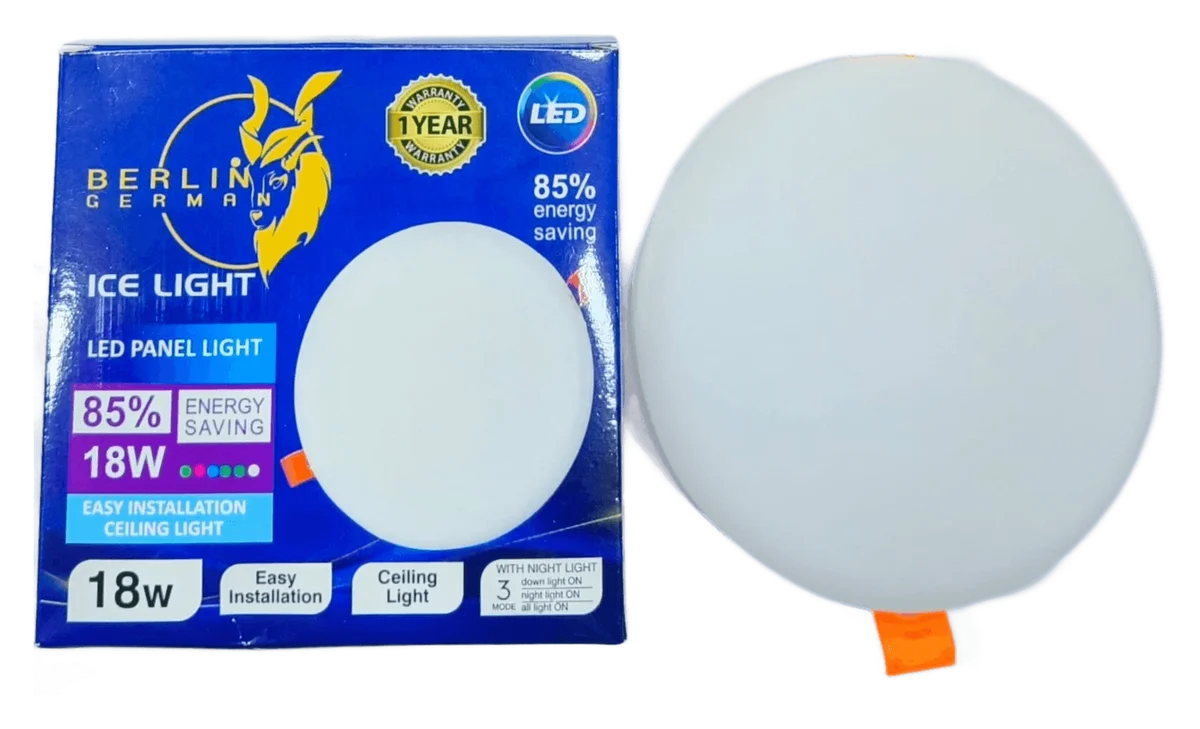

Ice Light
LED panel · 18 W
About SR Electricals
Led by Abdul Samad Saleem
SR Electricals And Trading Co. operates as an electrical solutions provider engaged in the import, distribution and supply of circuit protection and LED lighting for residential, commercial and solar installations. As the supplier of the Berlin German range in Pakistan, the company works with recognised manufacturers to ensure consistency in supply and product standards.
Alongside distribution, SR Electricals supports electricians, contractors and solar installers with practical technical guidance — from selecting poles, ratings and tripping curves to pairing DC breakers with surge protection. The company's operations are guided by hands-on industry experience and a structured approach to sourcing, stocking and delivery.
Genuine Berlin German range
Grand SB Series circuit breakers, DC isolators, PV surge protectors and LED lighting, supplied in original packaging with manufacturer markings and CE / IEC conformity.
Stock & fast dispatch
AC and DC MCBs from 1 A to 63 A, 125 A disconnectors, surge protectors and LED panels held in stock at our Karachi premises for contractors, retailers and installers.
Technical guidance
Help choosing poles, ratings and tripping curves, sizing conductors, and pairing DC breakers with surge protection for solar systems.
After-sales support
2-year guarantee on breakers and a 1-year warranty on LED lights, with a direct line to our team on call and WhatsApp.
Product range
Everything between the supply and the switch
Five product families from Berlin German — pick a category to jump straight into the catalogue.
Catalogue
Berlin German products, fully specified
Every photo, rating and dimension from the manufacturer datasheets — filter by family or search by model, standard or rating.
Showing 7 of 7 products · Need a rating or pole configuration that is not listed? Ask us — the full Berlin German range is available to order.
Interactive tools
Specify with confidence
Two quick helpers built from the datasheets — choose the right breaker for a circuit, and see what LED lighting saves on your bill.
MCB selector
Find the right Berlin German breaker in four steps.
Recommended
BD1-63S 2P C20
- Rated voltage
- 400 / 415 V AC
- Short-circuit rating
- 6 kA breaking capacity
- Standard
- IEC 60898-1
- Min. conductor
- 2.5 mm² copper (minimum)
- Module width
- 36 mm (2 × 18 mm)
- Poles
- 2P
Guidance only — the breaker rating must not exceed the cable’s current-carrying capacity. Confirm with a qualified electrician.
LED savings calculator
See what switching to Berlin German LED saves each month.
Monthly energy use
You save every month
PKR 9,180
Every year
PKR 110,160
Estimate based on the 85% energy saving stated on Berlin German packaging; conventional lamp modelled at LED wattage ÷ 0.15. Adjust the tariff to match your electricity bill.
Knowledge hub
Understand the protection you install
Straightforward technical guidance drawn from the Berlin German datasheets — how a breaker trips, which curve to specify, how to size the cable, and why DC needs its own devices.

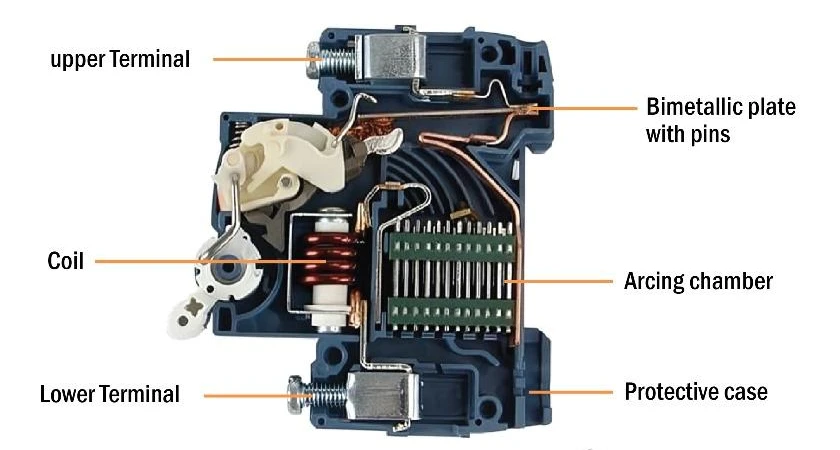

Inside an MCB
Two trips in one device
A miniature circuit breaker combines a slow thermal trip for overloads with an instant magnetic trip for short circuits, then extinguishes the resulting arc inside a stack of steel plates.
- 1
Bimetallic plate
Thermal trip — bends as it heats under a sustained overload (1.13–1.45 × In) and releases the mechanism after a delay.
- 2
Coil (electromagnet)
Magnetic trip — a short-circuit current pulls the plunger instantly, within 0.1 s, at 3–20 × In depending on the curve.
- 3
Arcing chamber
Stacked de-ion plates split and cool the arc drawn as the contacts open, letting the breaker interrupt up to 6 kA safely.
- 4
Moving & static contacts
Silver-alloy contacts that carry the load current and part quickly when the latch releases.
- 5
Terminals
Screw-clamp terminals top and bottom sized for 1–16 mm² conductors on the BD1-63 range.
- 6
Protective case
Flame-retardant housing with a contact-position window, DIN-rail clip and the ON / OFF handle.
Tripping curves
B, C or D — matching the curve to the load
All BD1-63 breakers share the same thermal characteristic; the letter sets how much surge current the magnetic trip tolerates before it releases instantly.
Below the band a breaker relies on its thermal element and trips after a delay; above it the magnetic coil trips in under 0.1 s. A higher letter tolerates more inrush before tripping.
Resistive loads with little or no switch-on surge.
- Domestic lighting
- Heaters & geysers
- Socket circuits
- Long cable runs
General-purpose protection where moderate inrush is expected — the most common choice.
- Air conditioners & fans
- Small motors & pumps
- Fluorescent / LED banks
- Commercial distribution
Loads with very high switch-on current that would nuisance-trip a C curve.
- Transformers
- Welding machines
- Large motors & compressors
- X-ray / industrial equipment
Conductor sizing
Match the cable to the breaker
The breaker rating must never exceed what the cable can carry. The datasheet pairs each BD1-63 rating with a minimum copper cross-section.
Applicable conducting wire
Nominal copper conductor cross-section for each rated current, as specified in the BD1-63 datasheet.
Long runs, high ambient temperatures and grouped cables reduce a conductor’s capacity — step up a size when in doubt, and use the MCB selector above for a quick starting point.
AC versus DC
Why solar needs DC-rated protection
Direct current never passes through zero, so an arc drawn by opening contacts does not self-extinguish. DC devices are built differently — and rated per pole.
Poles add voltage

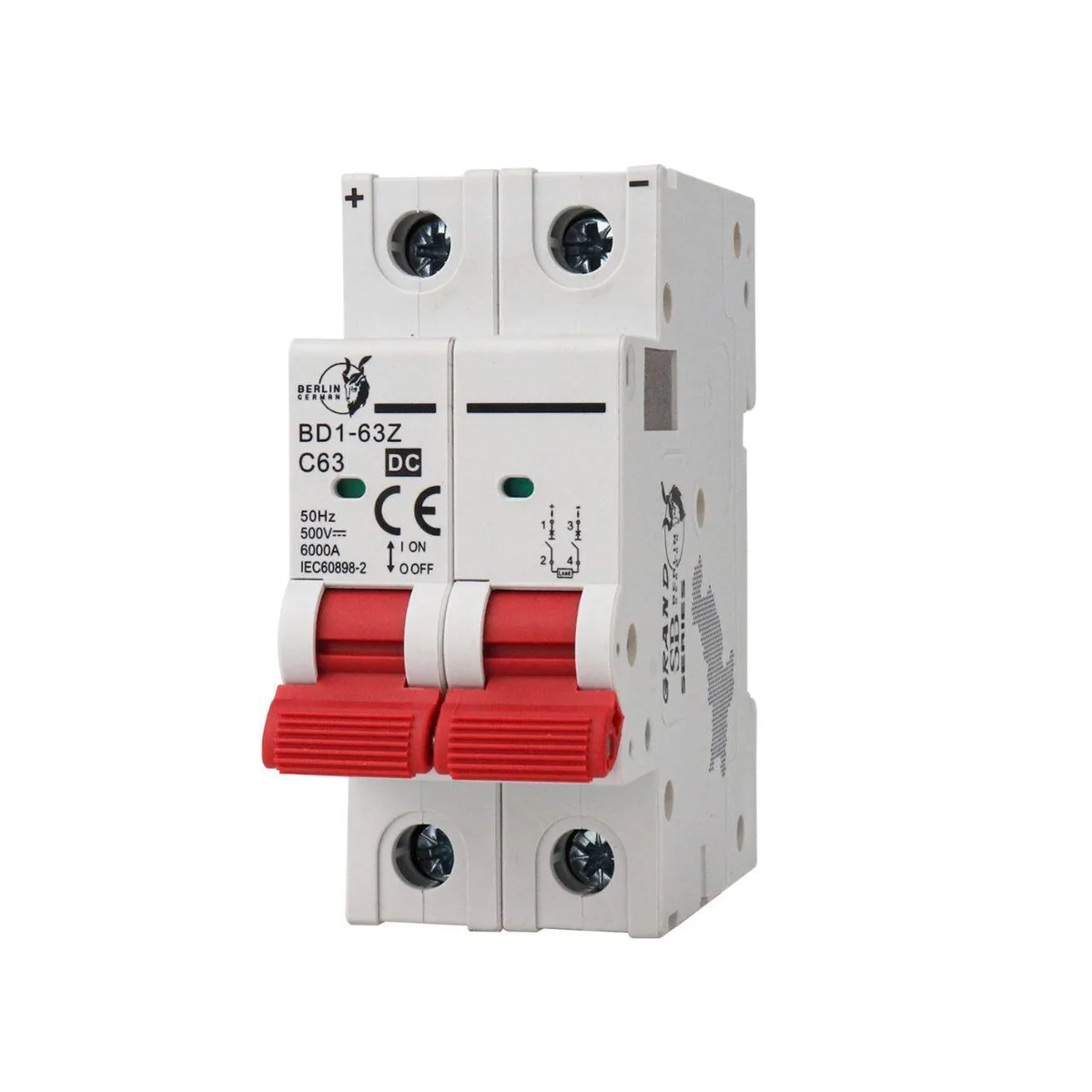

The BD1-63Z is rated 250 V DC per pole: wire poles in series for 500 V (2P), 750 V (3P) or 1000 V (4P) strings.
Polarity matters
DC breakers carry + and − markings. Connect the string in the direction shown so the arc chamber works as designed.
Isolate and protect
Use the BD-100Z as a padlockable main isolator at the inverter, and fit an SB-2040PV surge protector to clamp lightning-induced spikes below 4 kV.
FAQ
Questions we hear every week
Quick answers for electricians, installers and retailers. Anything else — message us on WhatsApp.
The letter is the tripping curve and the number is the rated current in amperes. A C32 trips instantly between 5 and 10 times 32 A (160–320 A) on a short circuit, and after a delay on smaller overloads. B curves trip at 3–5 × In and D curves at 10–20 × In.
Downloads

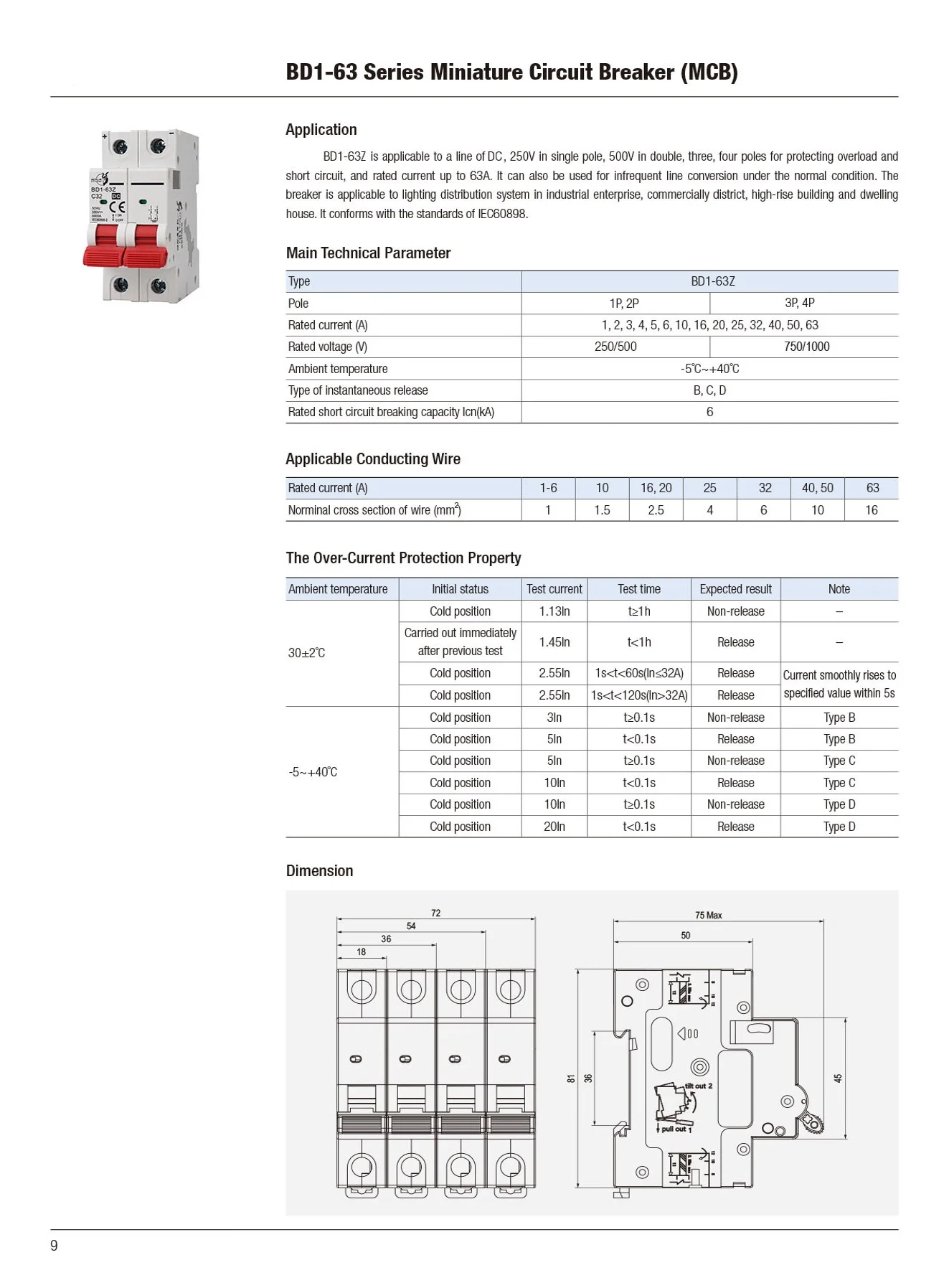

Manufacturer datasheets
Original Berlin German technical sheets — ratings, tripping characteristics, wire sizes and dimension drawings — ready to attach to your specifications.
Where we work
Serving Sindh, city by city
From our head office in Karachi we supply electricians, contractors, retailers and solar installers in 11 cities across the province — and deliver anywhere in Pakistan on request.
Head office & shop
Karachi
Plot No. E/33, S.I.T.E., Near Ghani Chowrangi, Maripur Road, Karachi, Pakistan
Walk in for stock, quotations and technical advice.
Cities we serve
11 citiesNot in the list? We dispatch across Pakistan by courier and transport — send us your city and quantities.
